Optical Lens Set

         Product                                 Model #                                        Unit                     Apply

• Optical Lens          focusing lens group       D30F125                    Set                     6000W

Collimating lens group   D30F100                    Set

• Optical Lens          focusing lens group       D30F200                    Set                      8000W

  Collimating lens group    D30F100                    Set

• Optical Lens          focusing lens group       D37F150                    Set                      12000W

  Collimating lens group    D37F100                    Set

• Optical Lens          focusing lens group       D37F200                    Set                      15000W

  Collimating lens group    D37F100                    Set

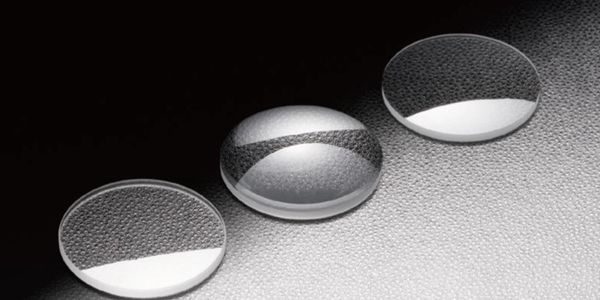

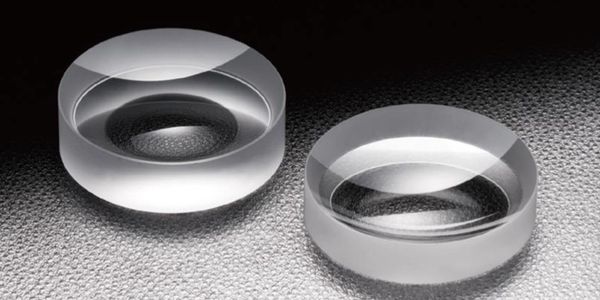

Focusing lens assembly: A convex lens group is formed through the combination of a crescent lens and a biconvex convex lens, which can correct spherical aberration, making the focused spot smaller, the energy more concentrated, and the cutting sharper.

 Collimating lens assembly: Through a lens combination or a separate spherical lens, the transmission in the optical fiber is converted into collimated light, with small size and low loss.
