Rudy Red Quartz Tube
Application
Application
Application

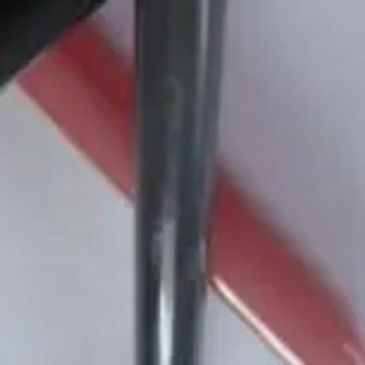

The Ruby Red lamp is a short wave emitter, and thus has all of the benefits of fast response and high heating density of the T3. In addition, the Ruby Red filters out the objectionable visible light, which minimizes color selective heating. The Ruby Red is a sealed construction and has a life expectancy of 5000 hours.
Maily Apply For
- Outd
The Ruby Red lamp is a short wave emitter, and thus has all of the benefits of fast response and high heating density of the T3. In addition, the Ruby Red filters out the objectionable visible light, which minimizes color selective heating. The Ruby Red is a sealed construction and has a life expectancy of 5000 hours.
Maily Apply For
- Outdoor and indoor heating
- Breeding animals
- Paint drying
- Coil coating in steal industry
And various kind of drying processes
Benefit of
Application
Application

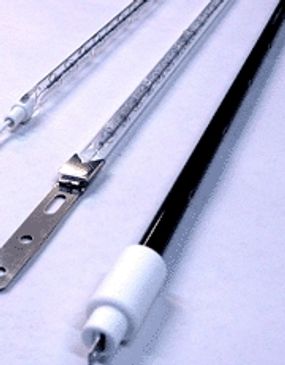

New infrared emitter, the short wave Ruby Red lamp has been developed to provide the benefits of short wavelength T3 lamps, without the glare. This lamp has high heating rates in up to 100 w/in and has instant on and off capabilities similar to a T3 lamp. The Ruby Red lamp utilizes a colored quartz envelope that surrounds the tungsten fil
New infrared emitter, the short wave Ruby Red lamp has been developed to provide the benefits of short wavelength T3 lamps, without the glare. This lamp has high heating rates in up to 100 w/in and has instant on and off capabilities similar to a T3 lamp. The Ruby Red lamp utilizes a colored quartz envelope that surrounds the tungsten filament. The envelope absorbs the energy emitted in the visible range. The emission of the Ruby Red is reduced significantly in the visible range (0.39 to 0.78 microns). The thermal losses of the lamp are less than 5% of the total emission.
Common Size
Application
Common Size
8x10x1600mm
10x12x1600mm
Length made to customer
