Transparent Quartz Tube
Transparent Quartz Tube
Used Electric Furnace drawing, accord with International standard. Full length of transparent Quartz Tube, Quartz Rod.
Produce with high quality nature crystal as the raw material, go thru advanced technic. At UV wave band 185nm, the wavelength through average about 70%, it is the best material for ozone-free sterilize lamp or sleeve quartz glass tubing. At UV wave band 253.7nm, the wavelength through rate average > 85%, be propitious to Ozone sterilize lamp or sleeve quartz glass tubing.
Transparent Quartz tubes widely apply to Semiconductor, Lighting, and Electric heating Industrial field.
Low OH content, industry standard quartz material, widely use in halogen, ultraviolet lamps, thermocouples and other high temperature products.

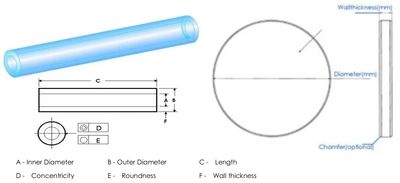

Standard Size & Tolerance (Tube):
Size (mm) OD(mm) W.t.(mm) Length(mm) Sliding Max(mm) Bow Max(mm) Oval Max(mm)
<15 ±0.15 ± 0.10 ± 1.0 0.10 0.15 2‰
15-30 ±0.25 ± 0.15 ± 1.0 0.13 0.25 2‰
30-50 ±0.50 ± 0.15 ± 1.0 0.15 0.50 2‰
50-70 ±1.50 ± 0.20 ± 1.0 0.20 0.70 2‰
70-130 ±2.00 ± 0.25。 ±1.0 0.20 1 4‰
Low Ozone Quartz Tube
Colorless on surface, cut ends appear as light purple color. This product able to stop the ultraviolet radiation before 220nm, and 253.7 nm ultraviolet radiation wavelength through rate as obove 70%. This wave length ultraviolet radiation has strongest disinfectant, we name as sterilize or ozone free quartz tubing. Widely apply to sterilization, water treatment etc.
OD mm) W.t(mm) Length(mm)
12±0.2 1±0.1/0.2 0-1600
15±0.3 1±0.1/0.2 0-1600
19±0.3 1.2±0.2/0.3 0-1600
25±0.5 1.3±0.3 0-1600
Filter UV Quartz Tube
Apply to prevent human or matter from ultraviolet radiation and high temperature resistant lamp
Size (mm) OD(mm) W.t.(mm) Length(mm) Sliding Max(mm) Bow Max(mm) Oval Max(mm)
8-12 ±0.30 ± 0.10 ± 1.0 0.15 0.2 2‰
12-15 ±0.40 ± 0.15 ± 1.0 0.2 0.3 2‰
15-20 ±0.50 ± 0.15 ± 1.0 0.2 0.4 2‰
